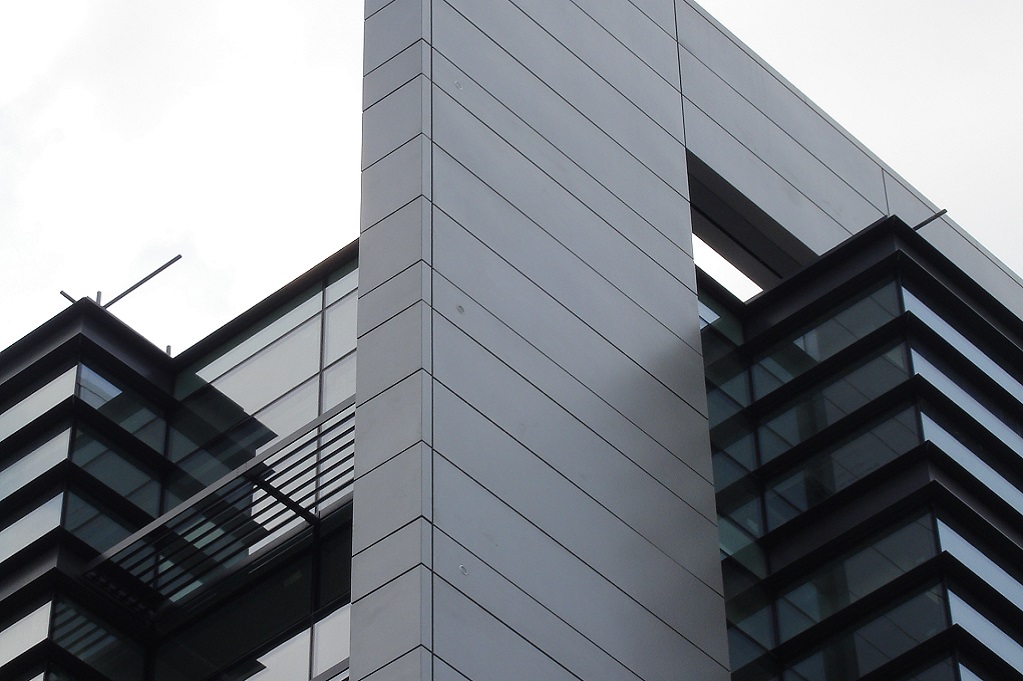

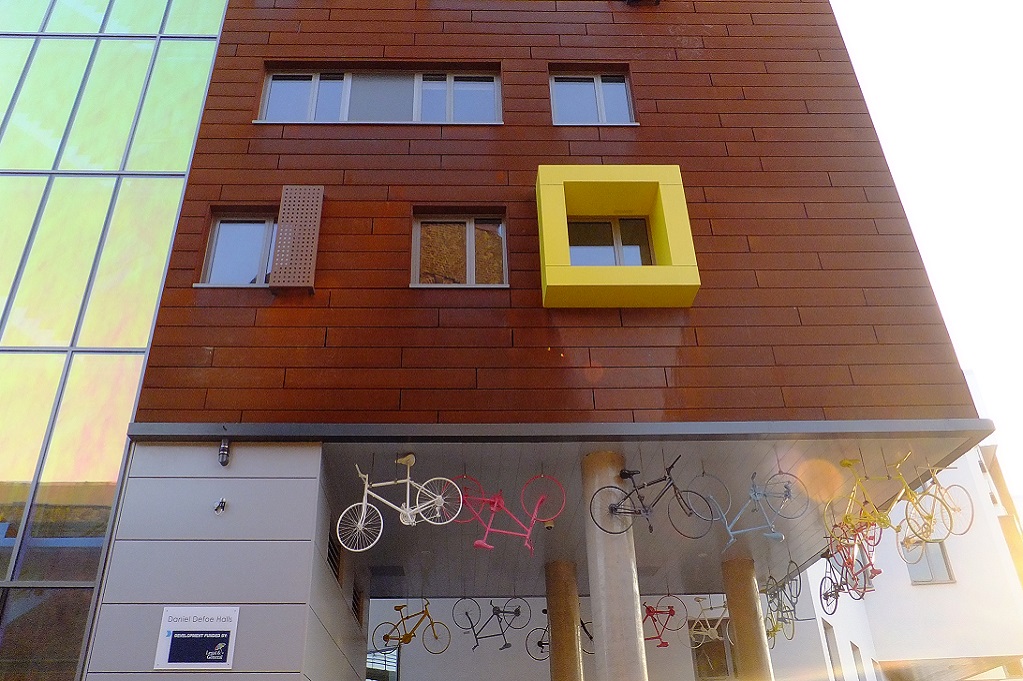

These Interlocking Plank panels are made up of an external skin from a thin gauged material such, COR-TEN® with a maximum thickness of 0.8mm or Aluminium and Zinc with a maximum thickness of 2mm.
The panels can be roll formed or CNC pressed.
Fast installation is achieved by stacking panels where they interlock and are fixed directly back to a secondary steel frame via PSP’s T rail secondary support system.
Special features, pressings and louvers can be manufactured from the same material ensuring it matches that of the panels.
Thermal movement is accommodated via slotted holes or floating clips.
This Interlocking Plank system offers a variety of benefits:
- Fully tested and accredited rainscreen system to CWCT standards
- System can be adjusted to suit the project
- Available in long lengths Lightweight Range of metal finishes available Quick installation Cost effective
Technical Details:
Fire Rated Materials and Finishes:
Solid aluminium | A2 rated non-combustible classified zinc such as Pigmento | Post powder coated classified as A2 fire rated | Pre-coated classified as A1 or A2 fire rated | Anodised aluminium classified as A1 rated
Visible Material Face (Outer Skin):
COR-TEN® (max thickness 0.8mm) | aluminium (max thickness 2mm) | zinc (max thickness 1.5mm)
Finish:
Pre/post painting or anodised – ensuring they meet rigorous industry standards and are resilient to extreme weather conditions
Fixing:
Clip or Slotted
Support:
PSP Matrix T Grid System
Joints:
Nominal 5-20mm vertical and horizontal joints
Ancillaries:
Fixings to enable connection between cleat and mullion and panel to mullion by PSP. Main fix from bracket to structure will be done by installers
BROCHURE DOWNLOAD
More information about
Matrix IPV & IPH Rainscreen
Cladding can be found here
Alternatively, for inspiration
why not check out our online
Project Gallery
Carrier System
The “T” Rail system is probably our most popular system.
Brackets are manufactured in house accommodating most cavity depths. The system is fitted vertically and best utilised where panels are horizontally laid however it can accommodate vertical.
CLICK HERE FOR MORE INFORMATION
ON CARRIER SYSTEMS & FACADE SUPPORTS >
Want More Information?
For further information on our PSP Architectural systems you can go to our Downloads section where you will find a library of certificates and technical information or alternatively give our technical sales team a call on 01388 770490 to discuss your project.
